Description:
Feature:
Features
|
Description
|
High accuracy
|
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
|
Wide measuring range
|
Several types transducer for selection, pipe size from DN15mm to DN6000mm
|
Far transmission distance
|
Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m
|
Powerful Functions
|
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channels, can be used for flow /heat switch;
Current input: 4-20mA, three channels, can be used for data collector;
Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.
|
Wide Application
|
Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.
|
General Specification:

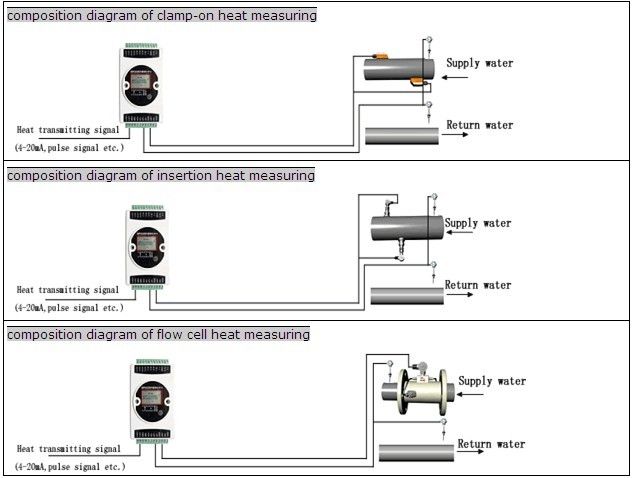

Structure of Unified Calorimeter:
Specification:
Features
|
Description
|
High Accuracy measuring
|
Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
|
Non-intrusive measuring
|
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
|
Wide measuring range
|
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
|
Light weight
|
Size: 210×90×30mm, weight: only 0.5kg
|
Large capacity battery
|
Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation
|
Large LCD display
|
Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
|
Built-in data logger
|
Built-in 24K data logger, store over 2000 lines measuring data
|
Standard Configuration:
- Main Unit
- Medium transducer TM-1
- Ultrasonic signal Cable
- Power Cord
- Carrying case
- Stretcher
- Tape ruler
- Data line
- Use Manual
Optional Transducer:
- Small transducer TS-2(Magnetic) DN15~DN100mm -40°C~110°C
- Medium size transducer TM-1(Magnetic) DN50~DN100mm -40°C~110°C
- Large size transducer TL-1(Magnetic) DN300~DN6000mm -40°C~110°C
- High-temperature small size transducer HTS-1 DN15~DN100mm -40°C~160°C
- High-temperature medium size transducer HTM-1 DN50~DN1000mm -40°C~160°C
Package Include:
- 1 x NEW Ultrasonic Flowmeter Digital Flow Meter Tester TUF-2000H-TM1 DN50-700mm
- 6 months warranty
- 60 days money back
- Life-time support.
----------------------------------------------------------------------------------------------------------------------------------------------------------------
ขอใบเสนอราคาและสอบถามข้อมูลเพิ่มเติม 0952511711, 0848744848 , 0922530999
หรือ email ( t_phuttharat@hotmail.com )
ชำระค่าสินค้าโดยการโอนเงิน
โดยจะทำการส่งสินค้าในวันถัดไปโดยบริการ EMS และจะส่ง Tracking NO. ให้ทาง EMS
รอรับสินค้าภายใน 2-3 วันหลังการจัดส่ง
ปล. กรณีไม่มีสินค้าในสต็อกอาจต้องใช้เวลาในการสั่งซื้อประมาณ 10-20 วันทำการ
ทดลองใช้สินค้าและสินค้าไม่ตรงกับรายละเอียดไว้ หรือ ไม่พอใจในตัวสินค้า เรายินดีคืนเงิน 100%
(ภายใน 7 วัน)
